Assembling The M3 Stuart
Step 1.

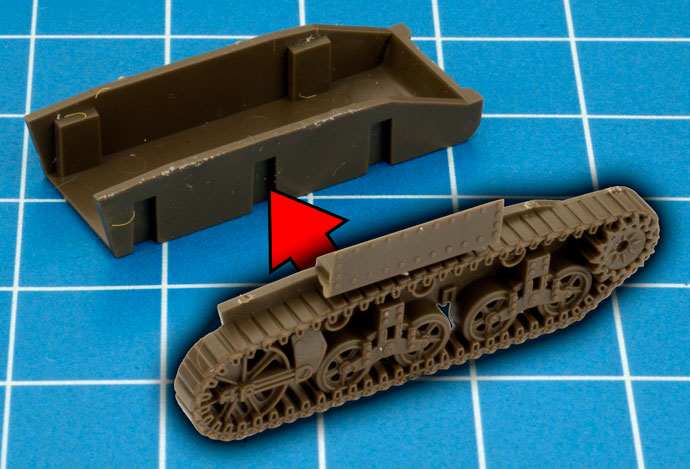

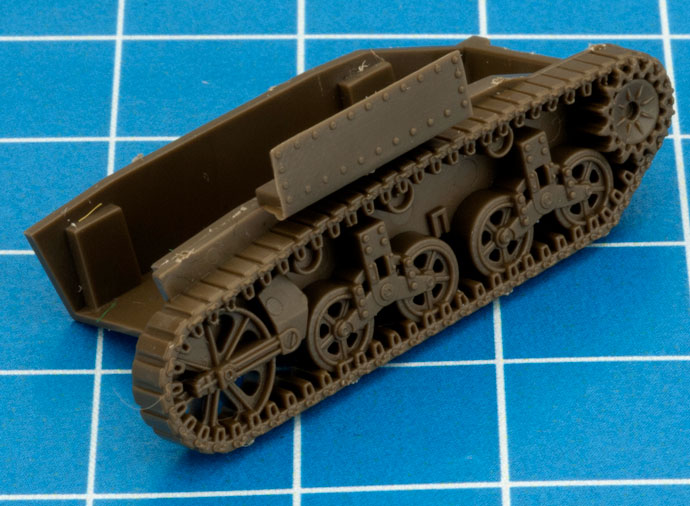

Begin assembly of the Stuart by attaching the right-hand side track to the hull section.
Step 2.

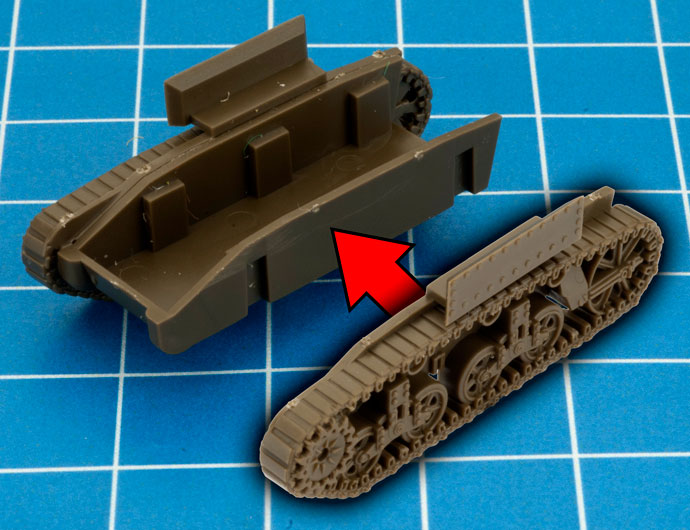

Next, attach the left-hand side track to the hull section.
Below:

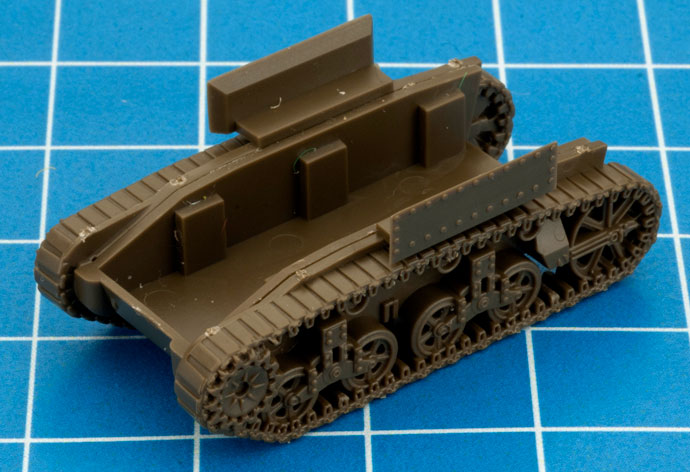

Both tracks in place.
Step 3.

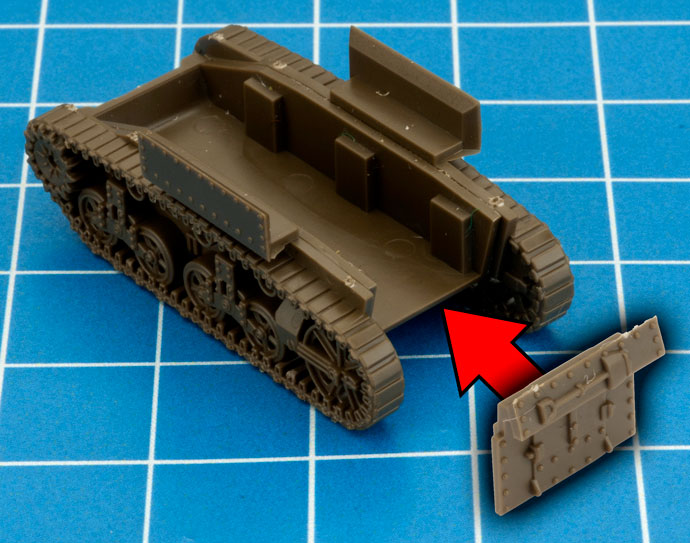

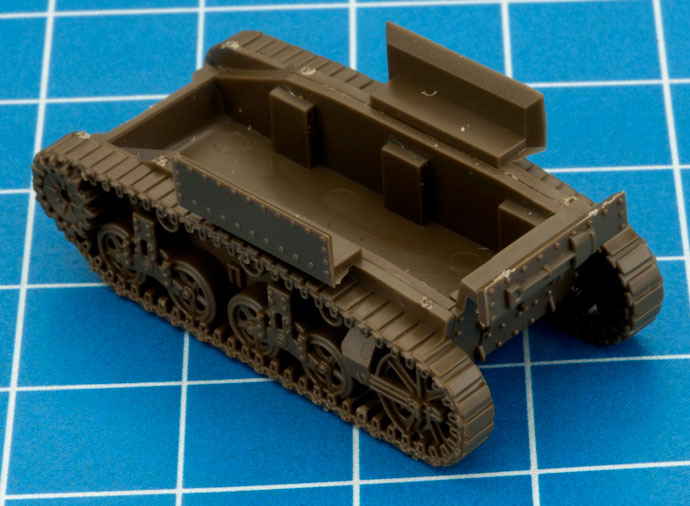

Next, attach the hull rear piece to the rear of the hull section.
Step 4.

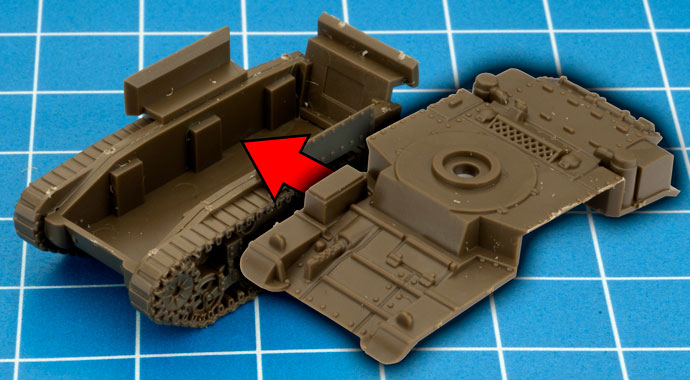

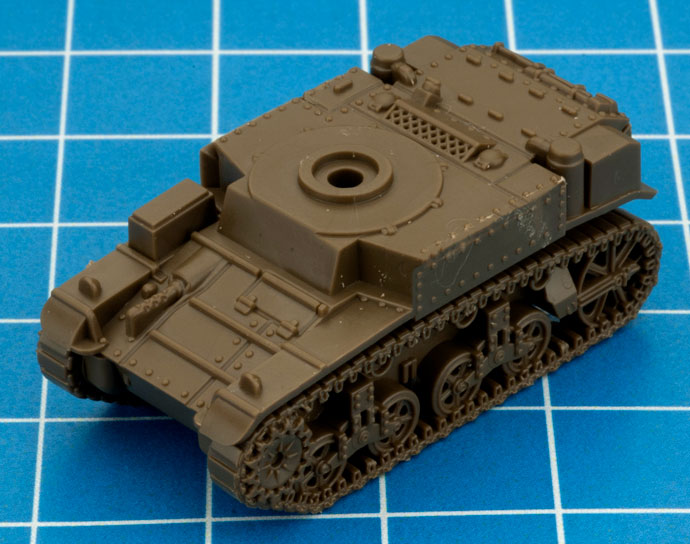

Mount the upper hull on the lower hull assembly.
Step 5.

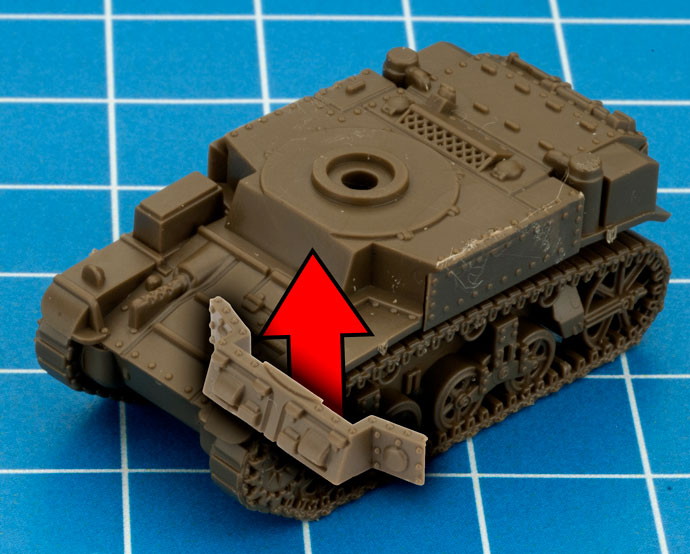

Attach the glacis.
Below:

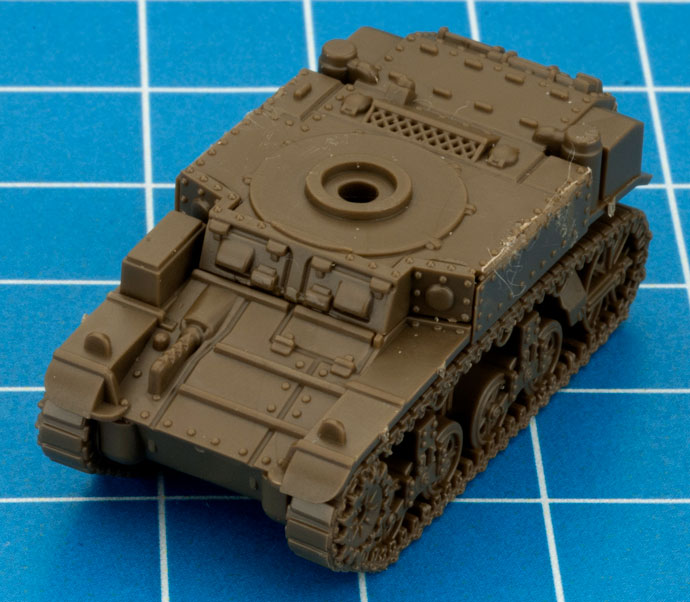

Glacis in place.
Step 6.

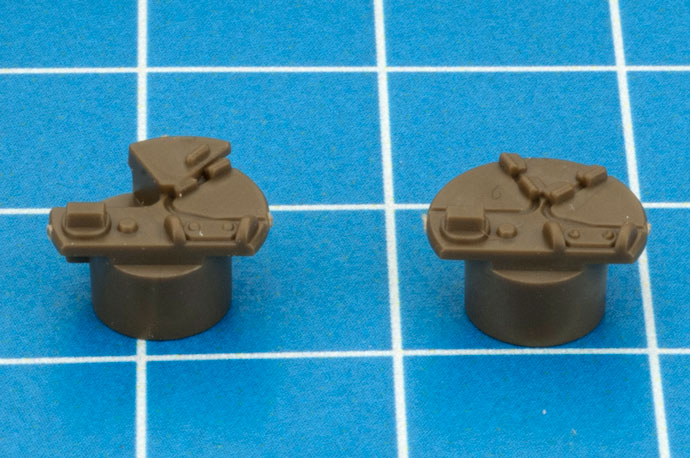

Choose an open or closed turret piece.
Step 7.

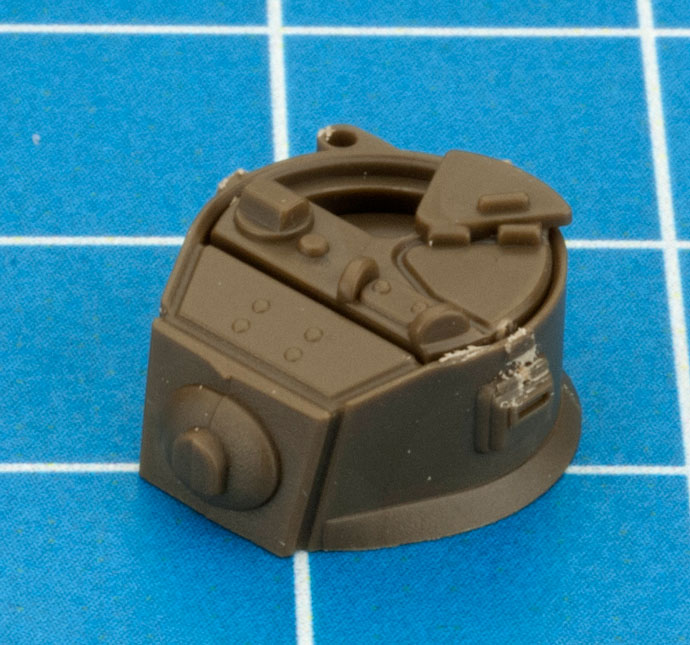

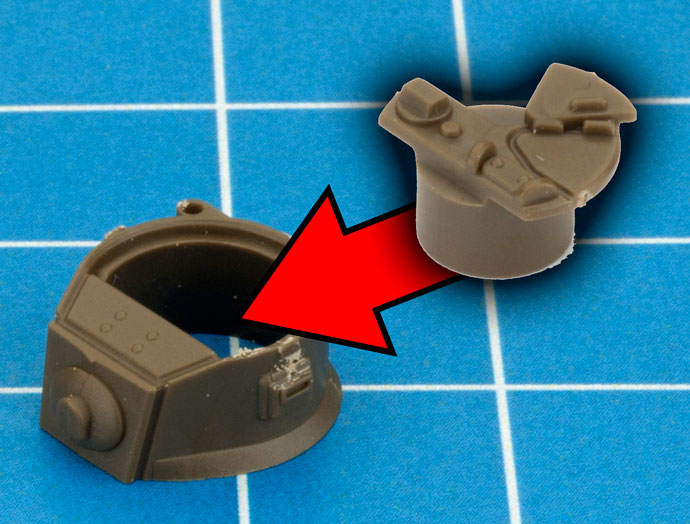

Assemble the main turret pieces.
Below:

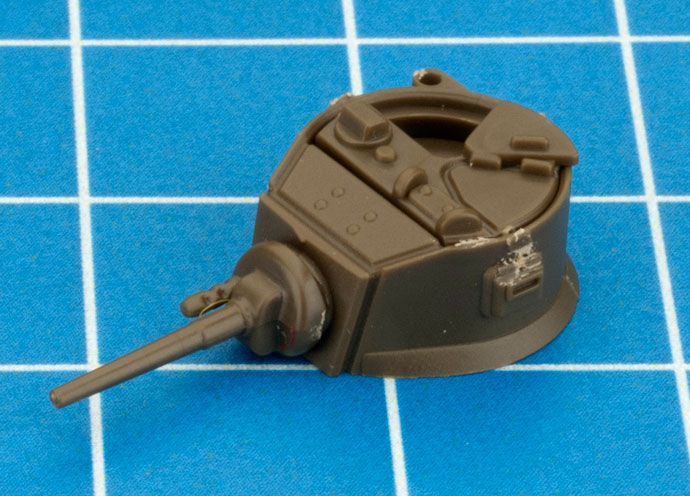

Assembled turret.
Step 8.

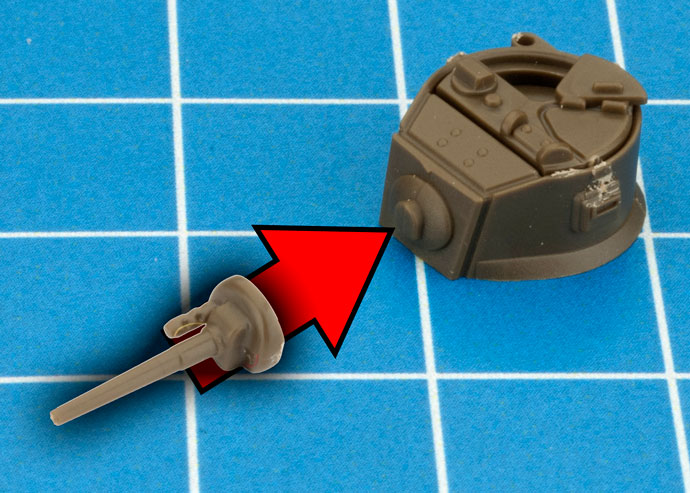

Attach the main gun to the turret.
Step 9.

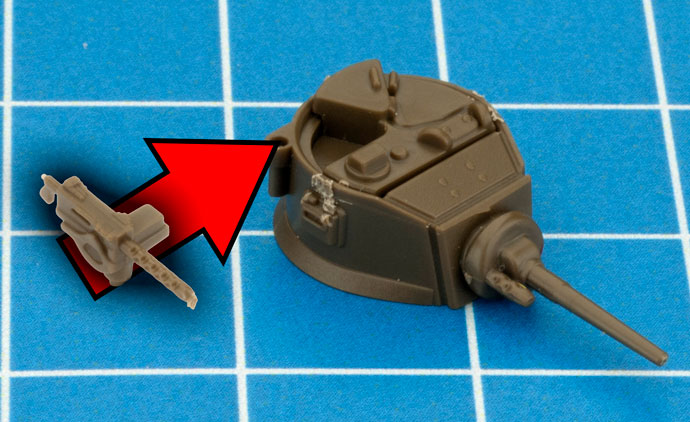

Next, a

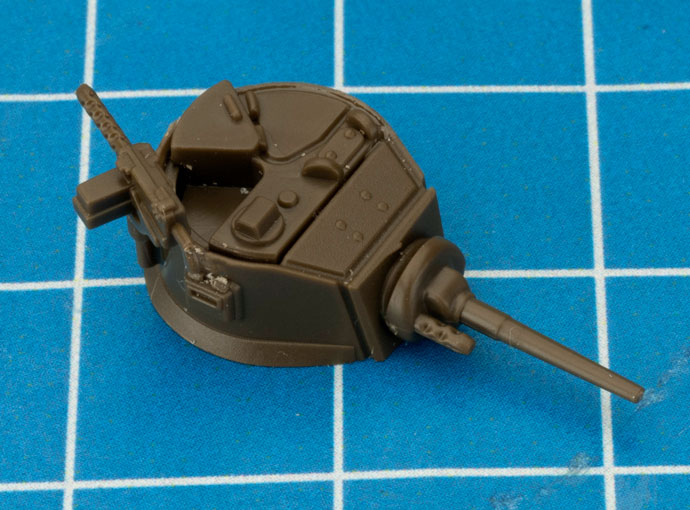

ttach the MG to the turret.
Below:
Mounted MG.
Step 10.

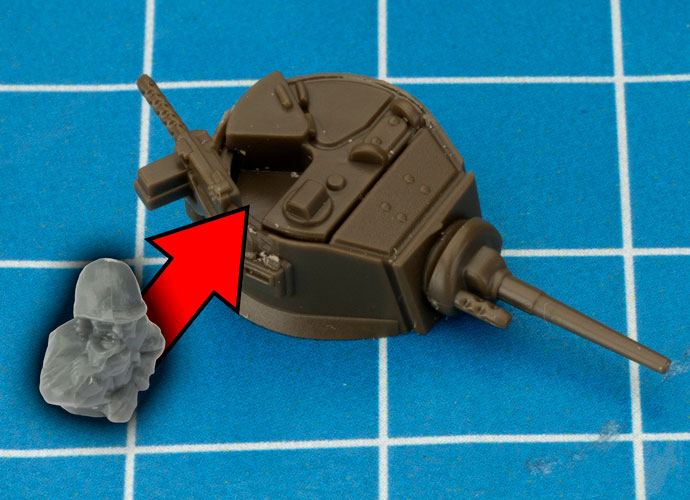

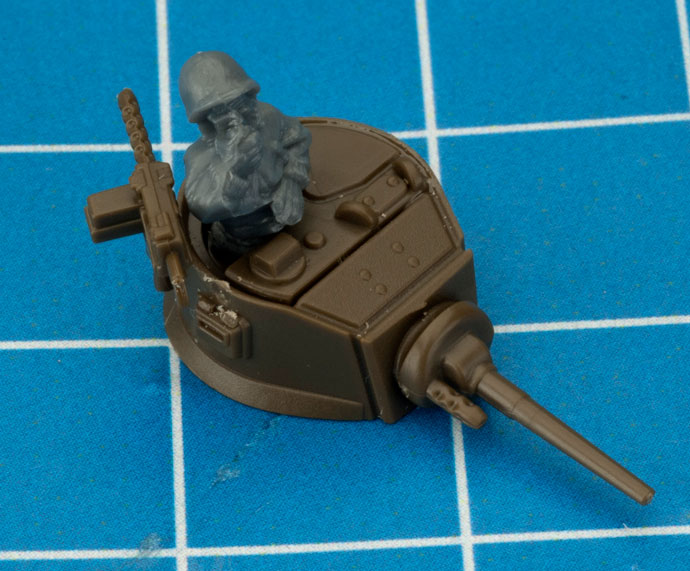

Glue your choice of commander in to the open hatch. (American commander shown)
Below:
Commander in position.
Note:

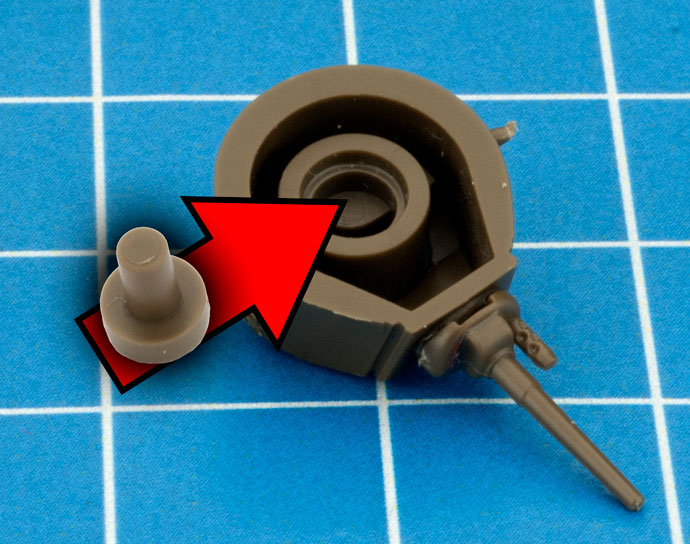

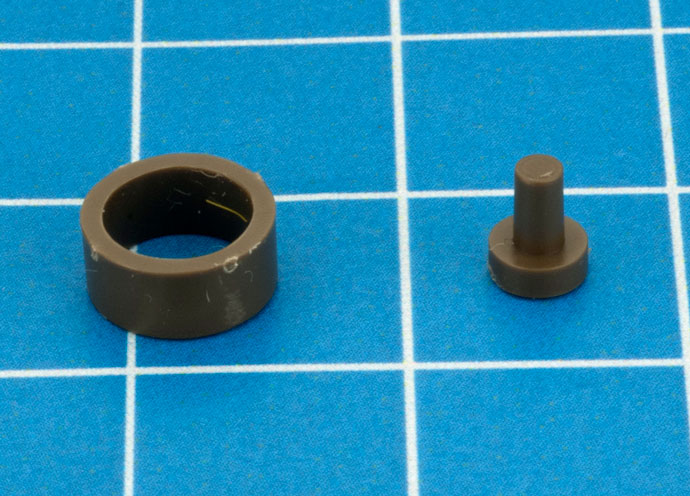

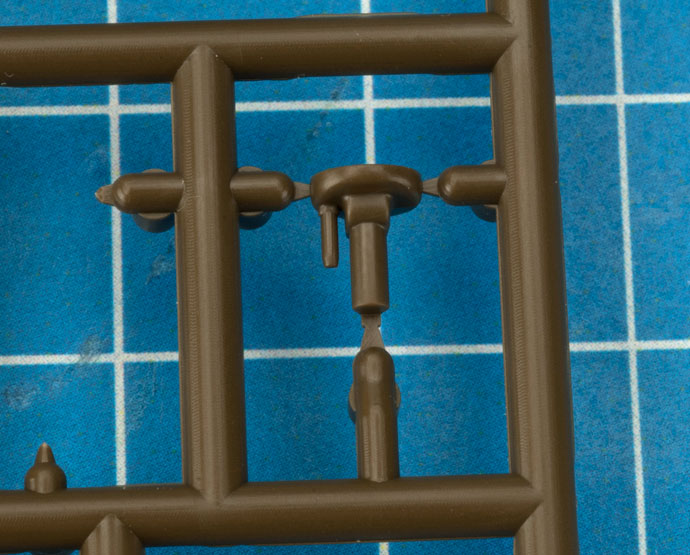

You can choose a magnet sleeve or turret peg.
Step 11.
Glue the pet in place.
Step 12.

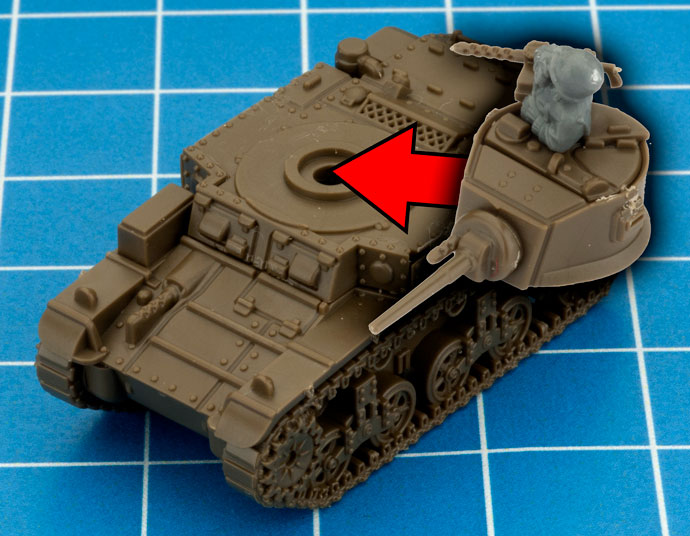

Mount the turret on to the hull assembly.
Below:
A fully assembled M3 Stuart.
Optional Extras

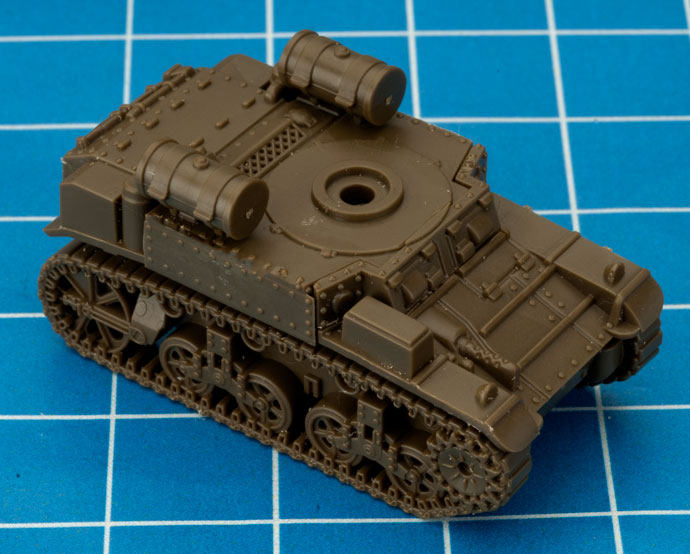

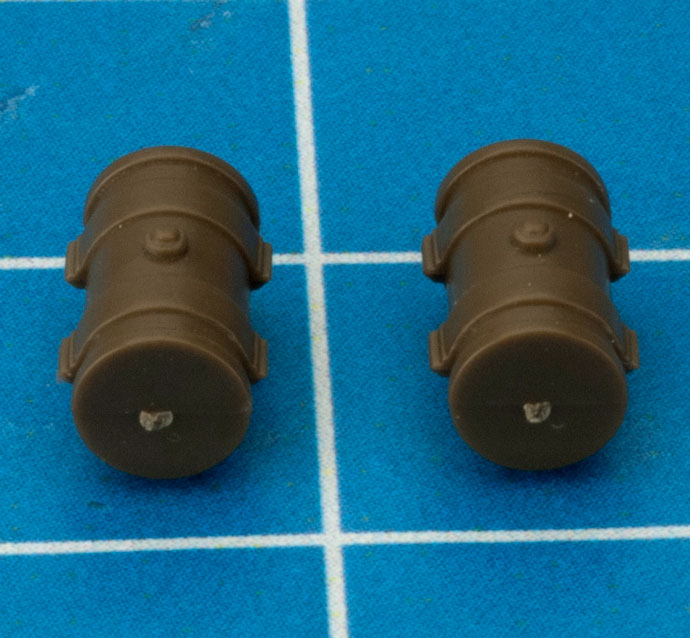

You may wish to attach fuel tanks, as seen below.
The sprue also features a flamethrower for building
