Assembling The Sherman (75mm)
Step 1.

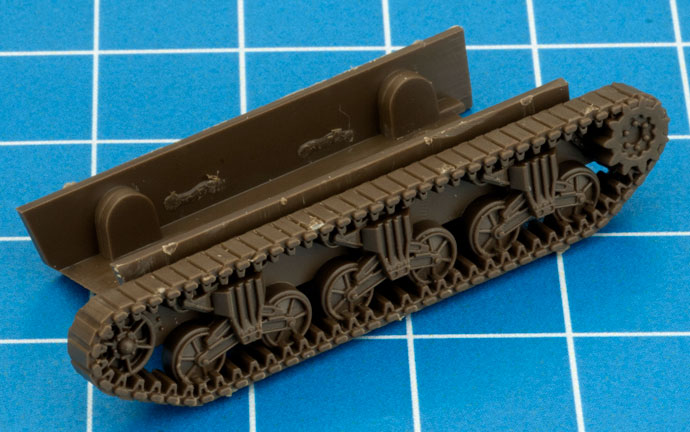

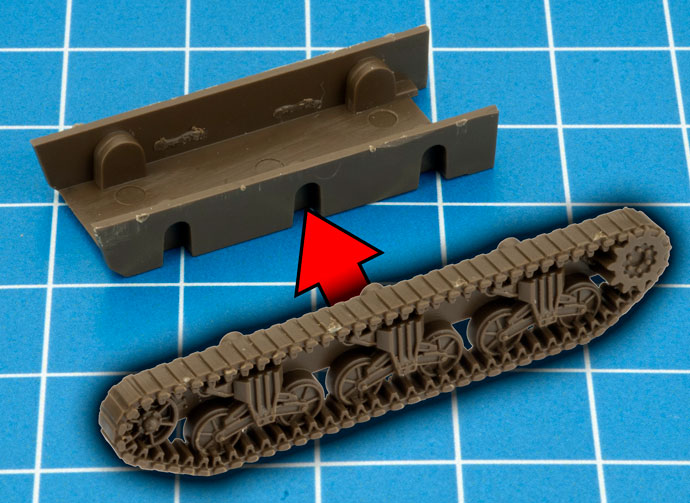

Begin assembly of the Sherman by attaching the left-hand side track to the hull section.
Step 2.

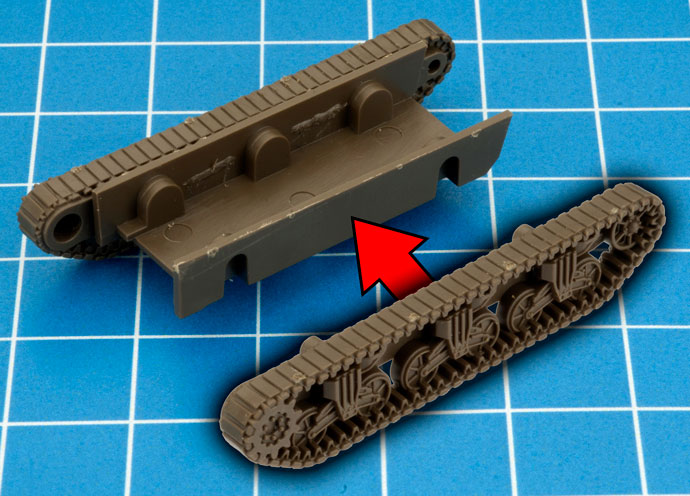

Next, attach the right-hand side track to the hull section.
Below:

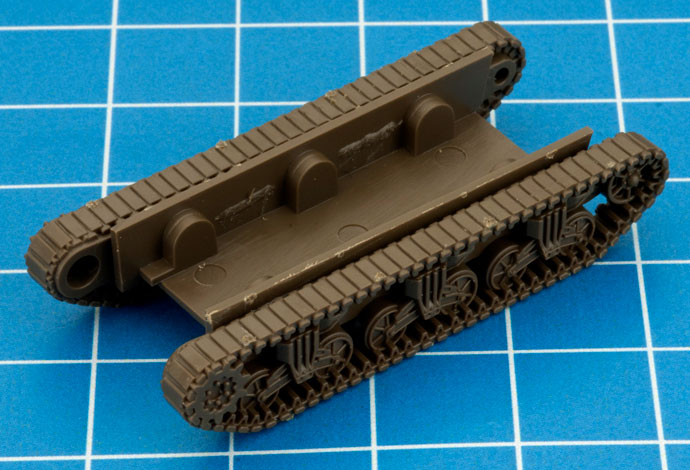

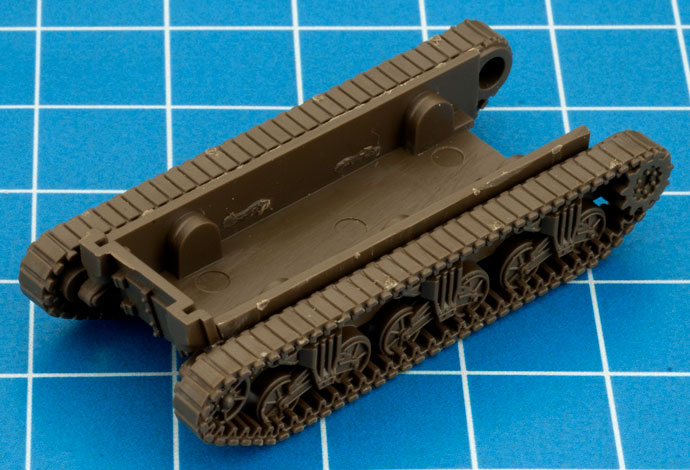

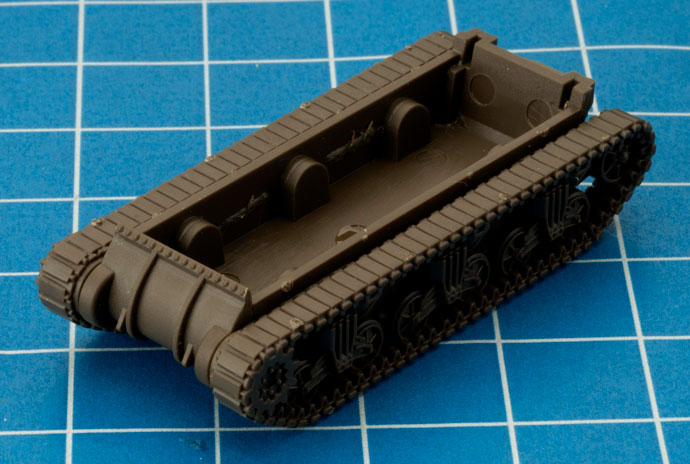

Both tracks in place.
Step 3.

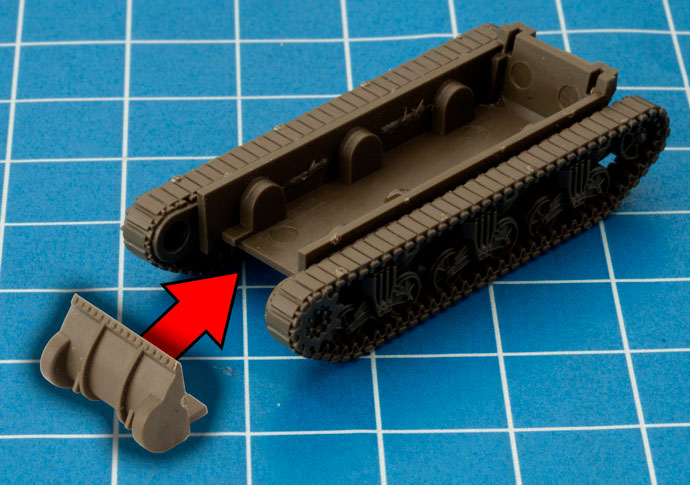

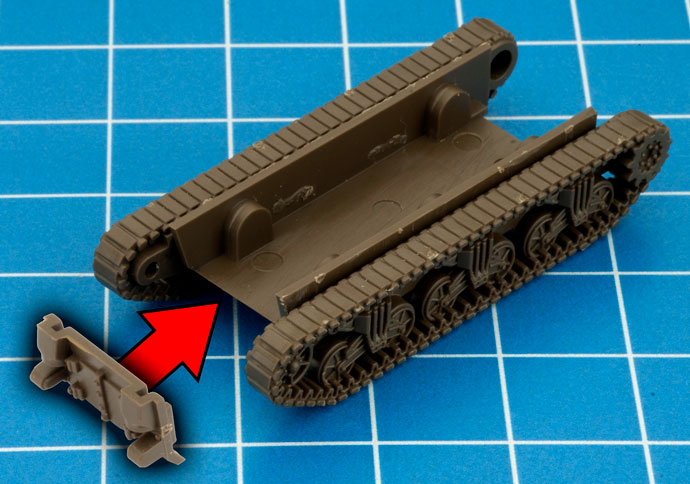

Next, attach the hull rear piece to the rear of the hull section.
Step 4.
For the desert use the transmission housing shown on the left. (below)
Below:
Transmission housing in place.
Step 5.

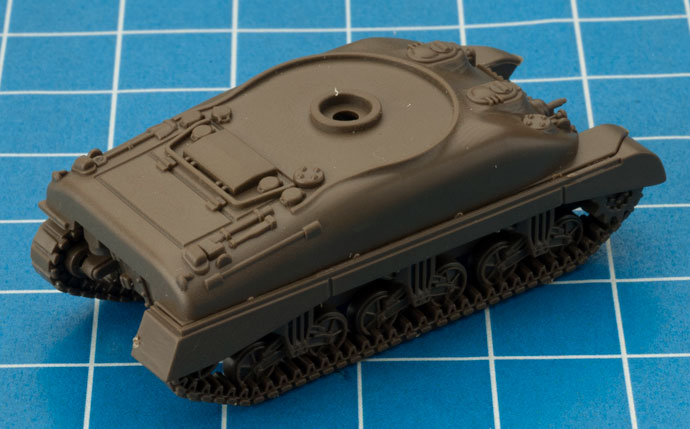

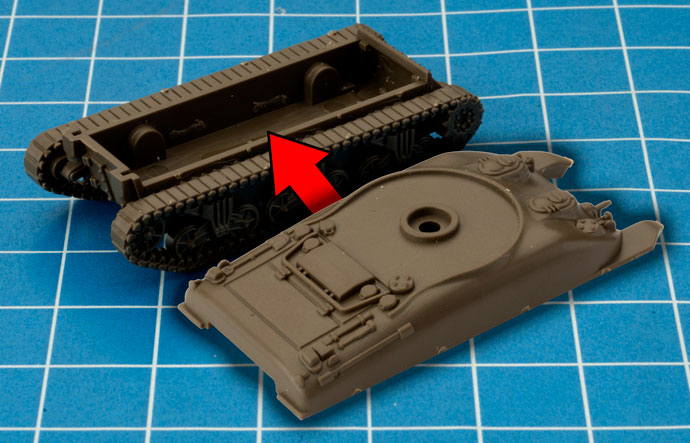

Mount the upper hull on the lower hull assembly.
Below:

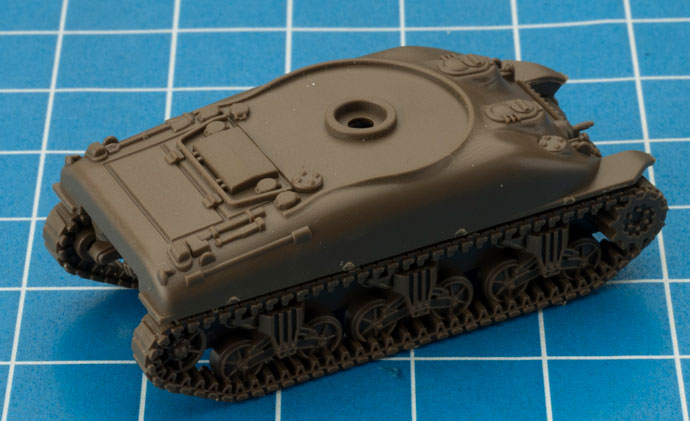

Upper hull in position.
Step 6.

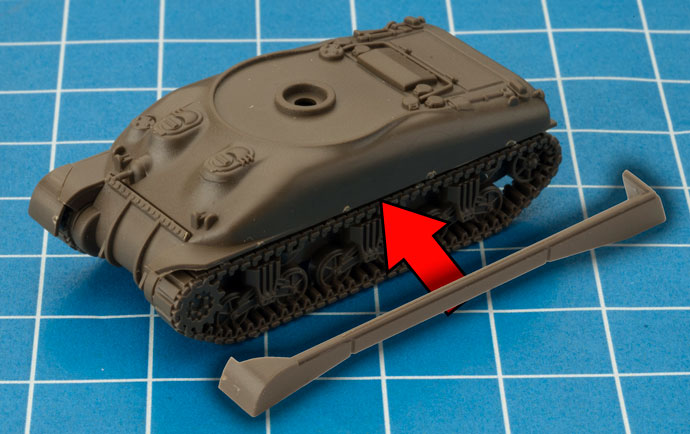

Attach the right-hand side skirt.
Below:
Right-hand side skirt in place.
Step 7.
Repeat for the left-hand side.
Below:

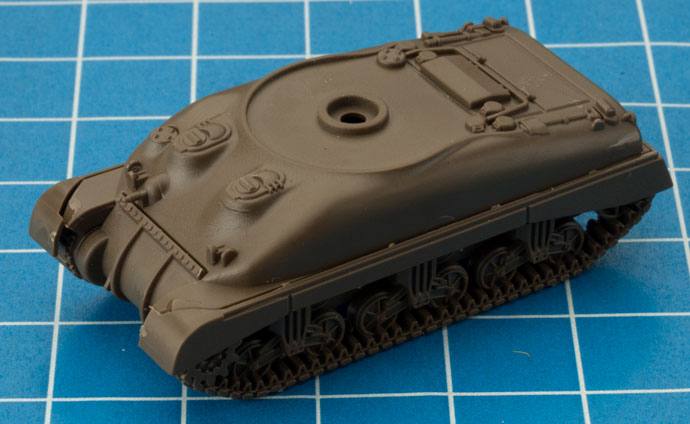

Side skirts in position.
Step 8.

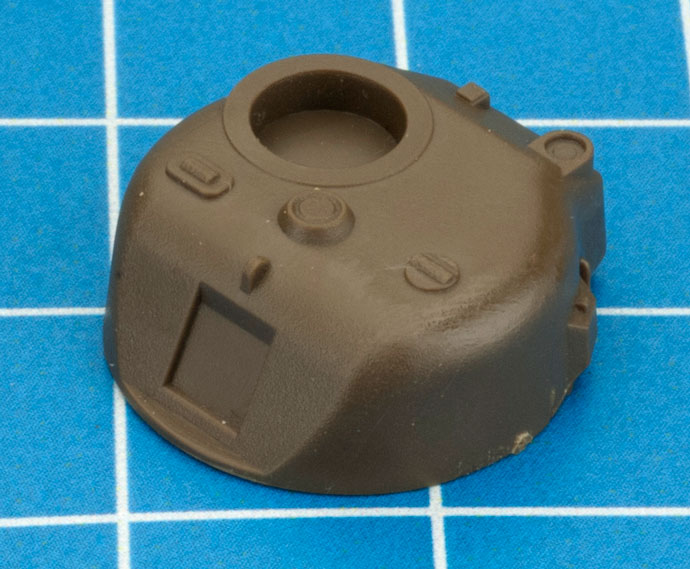

Assemble the main turret pieces.
Step 9.

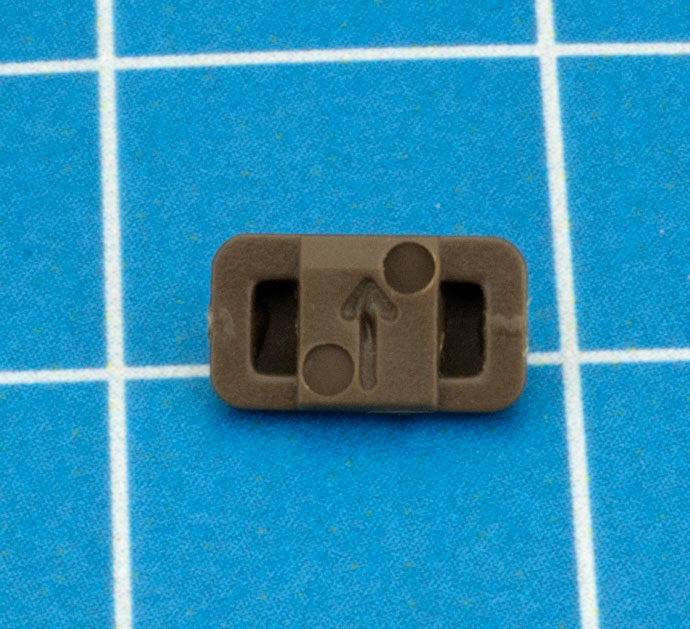

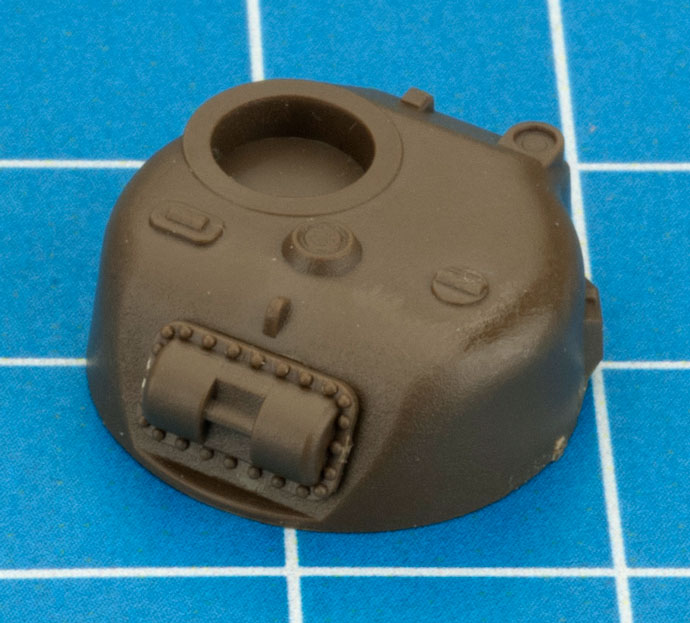

Affix the trunion to the turret assembly, noting the
orientation arrow.

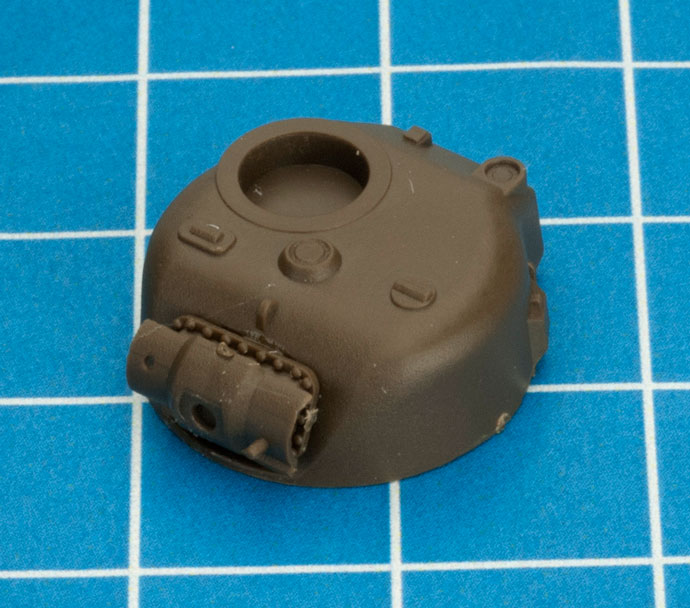

Below:
The trunion in position
Step 10.

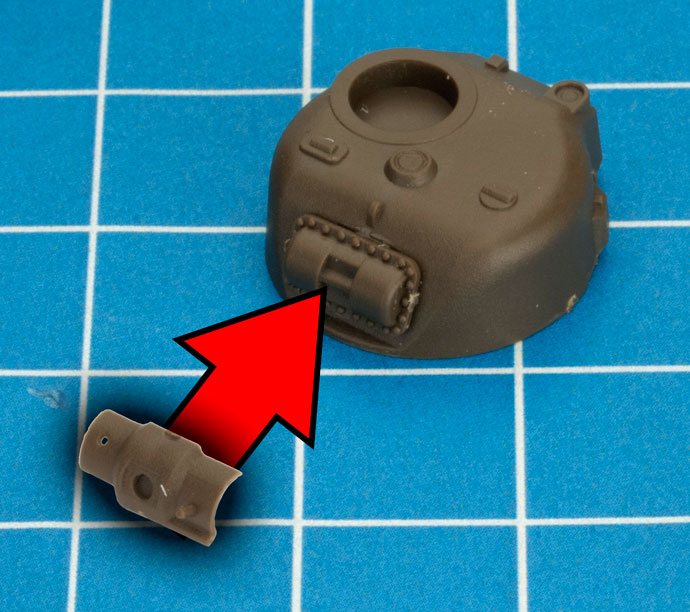

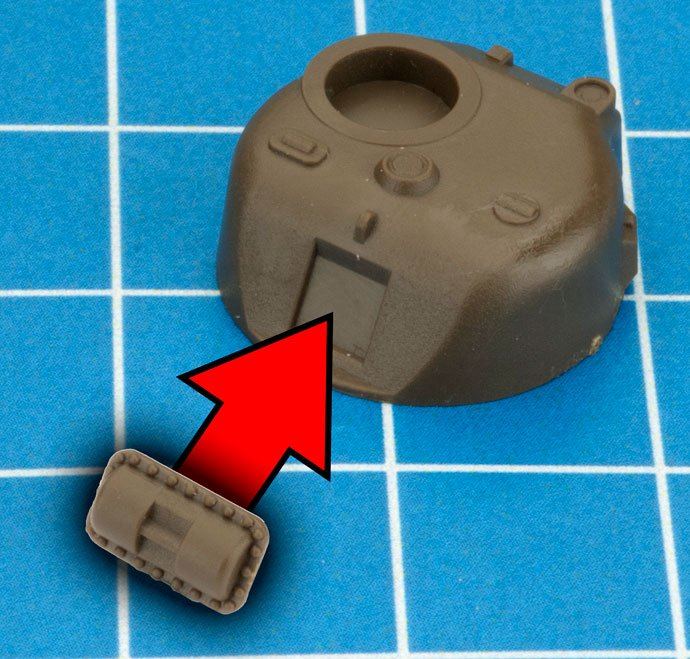

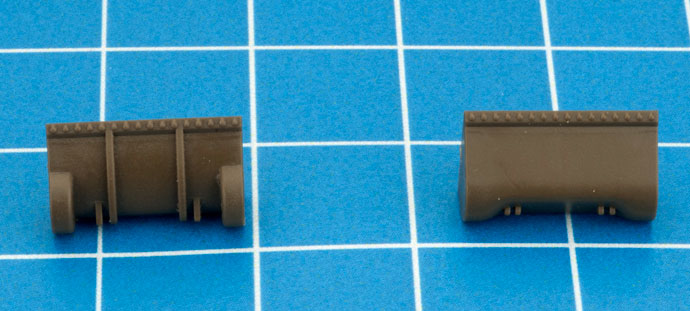

Attach the mantlet to the trunion.
Step 11.

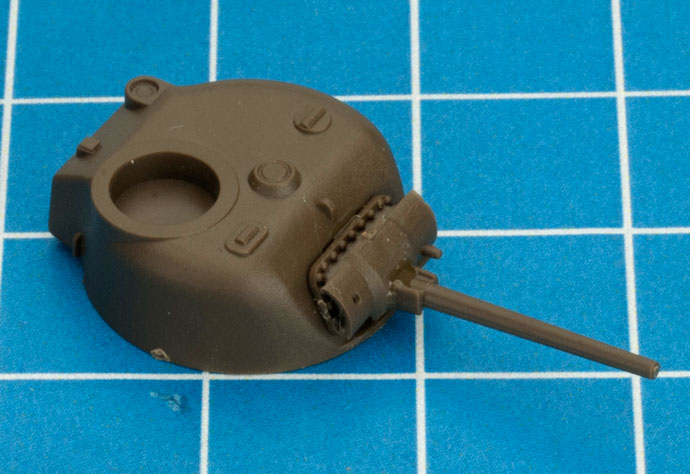

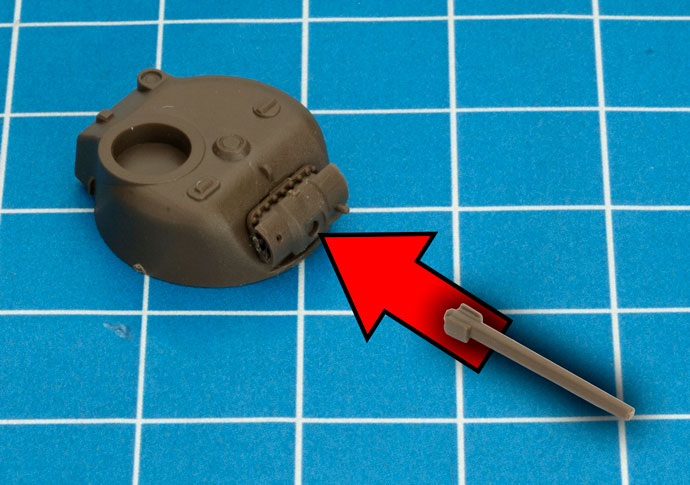

Attach the 75mm gun to the mantlet.
Step 12.

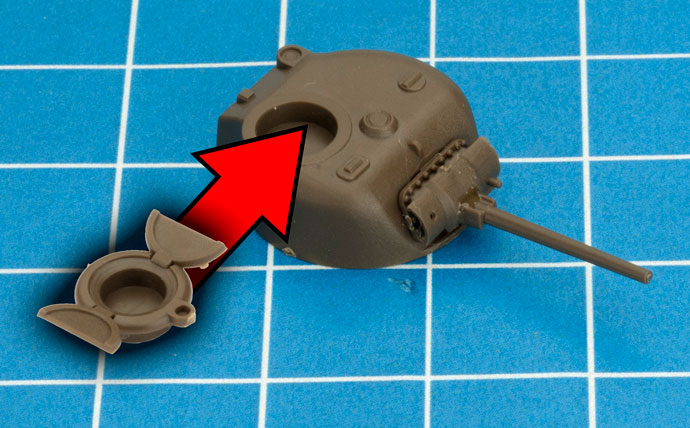

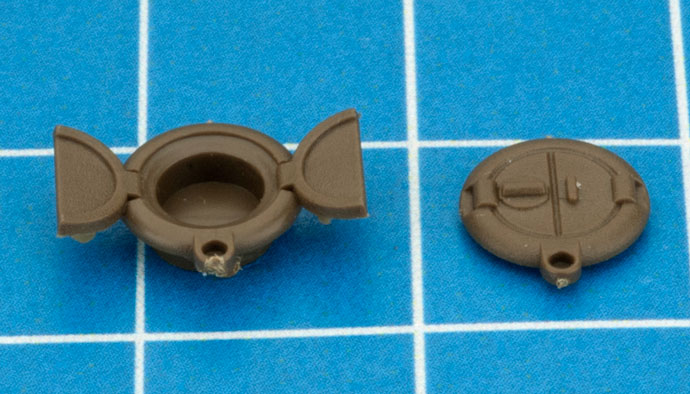

Mount your choice of hatch on the top of the turret.
Below:

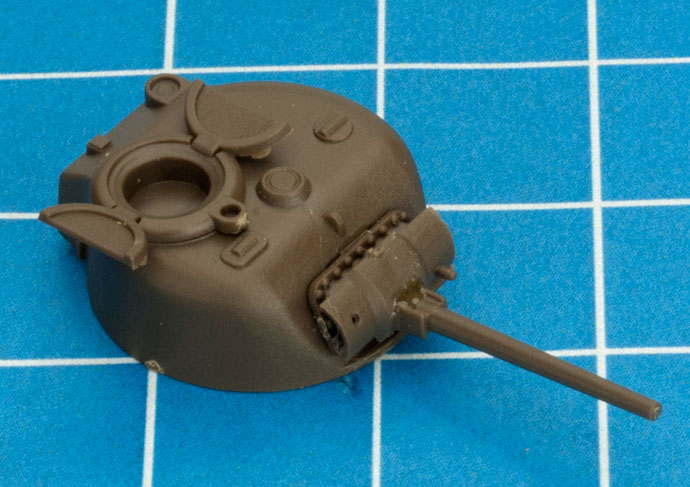

Open hatch in position.
Step 13.

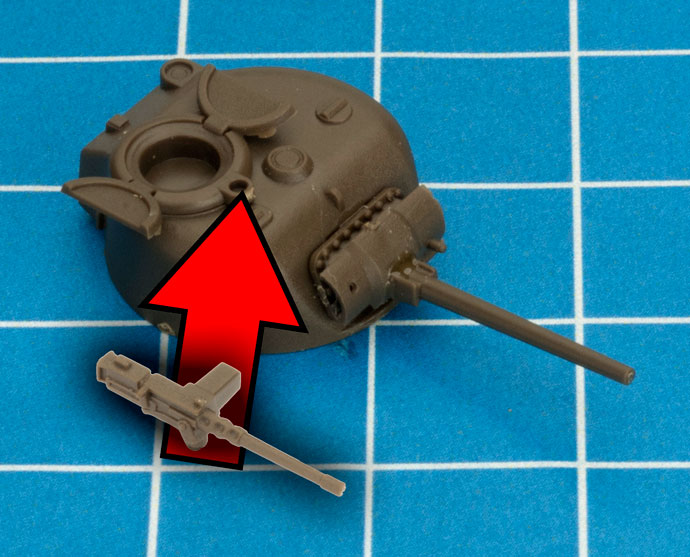

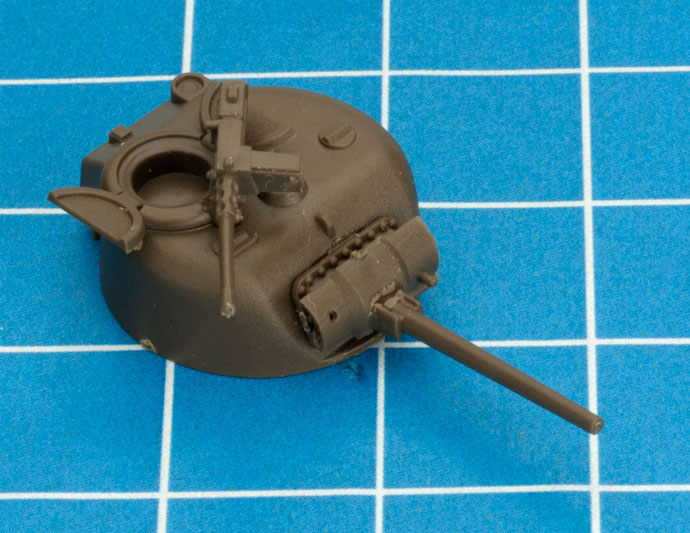

Attach the hull MG to its mounting point on the hatch.
Step 14.

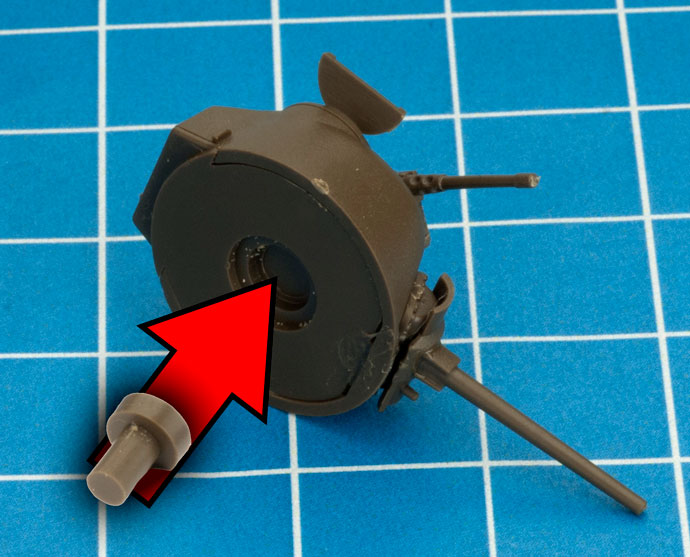

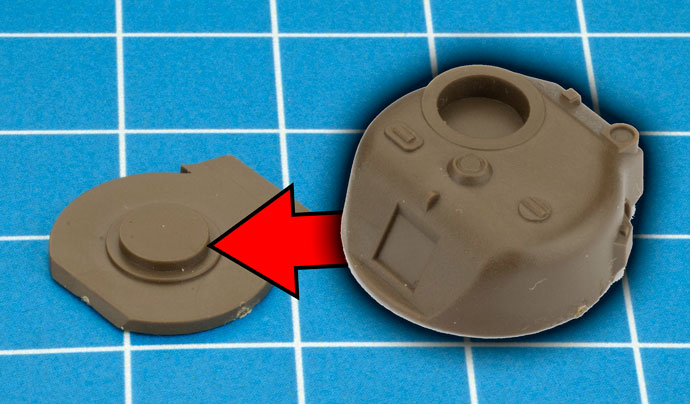

Affix a peg to the turret.

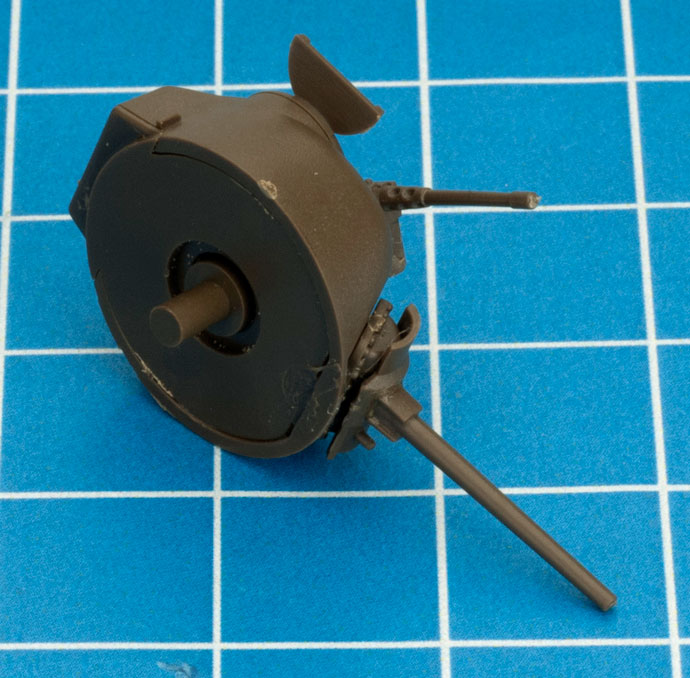

Below:
Turret peg in place.
Step 15.

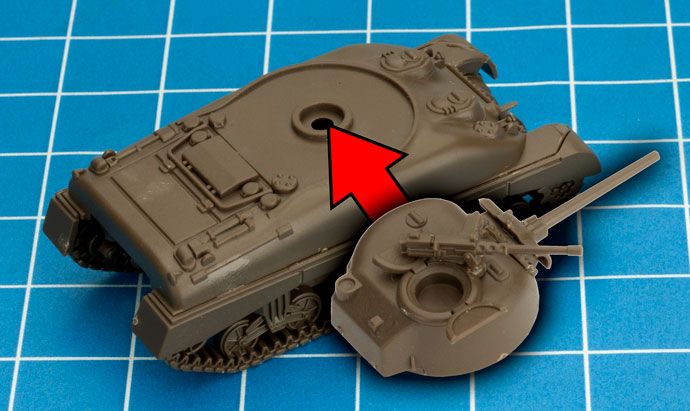

Position the turret on top of the hull assembly.
Below:
A fully assembled Sherman (75mm).
